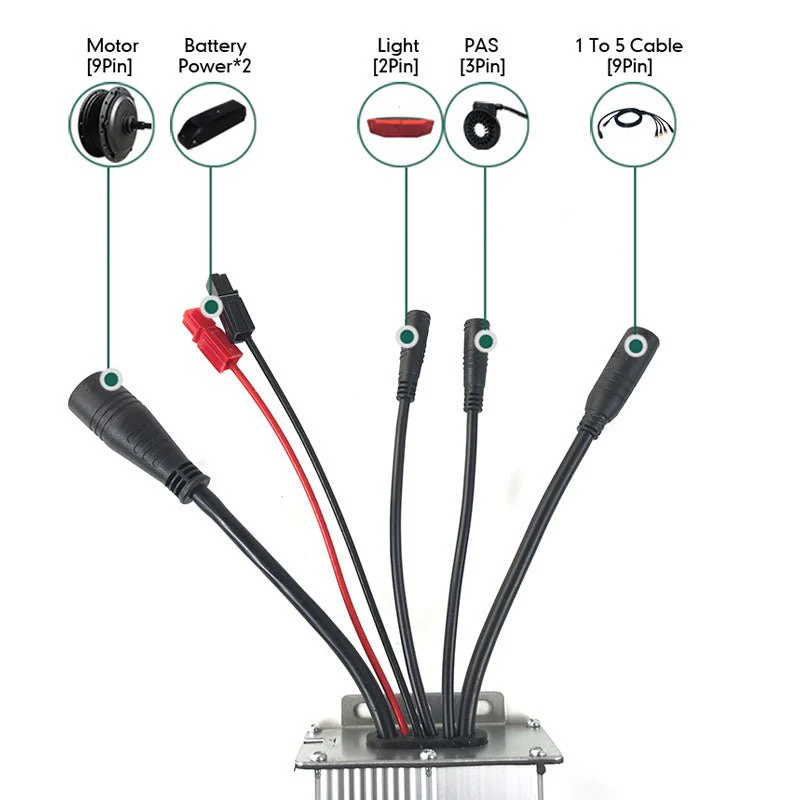

Freego eBike Brushless DC Motor Controller

Stable, high efficiency, low current consumption, long life.With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic.

Description：
Color :Silver
Dimension :about 128 * 68 * 38 mm
Mosfet :9  Mosfets
Maximum current :25±1A
Rated current :11A
Rated voltage :DC 48V / 60V
Speed set :1-4.2V
Brake input :Low-Level
Low voltage protection :DC30/40±0.5V
Cable Length :all about 13-18cm
Weight:450g
Wave:Square wave/Sine wave
